KD-260C
Automatic pillow packaging machine
  • description>
  • performance>
  • parameter>
  • Online inquiry>
product description

Scope of application

It is suitable for pharmaceutical industry, large density capsule etc or heavily heavily weight,and other regular shape.Widely used in food, pharmaceutical,hardware,daily chemical and other industries, can be done automatically feed,sealed bag,printing batch number,take whole process waste detection,finished product output,count!Optional KD-350c, 450c bigger type packaging machine.






Product Advantage

The introduction of German technology, USES the original servo motor control, compared with other similar frequency conversion motor or inverter control products at home and abroad, compared to more intelligent packaging of high precision, wide adjustable range, control more accurate.Using leading domestic servo blanking technology, lower rejection rate, the stability is better.Medicine plate plate number adjustment can automatically adjust, use open feeding, add convenient medicine plate.Speed ahead of common mechanical cutting device, the operation is simple.This machine also made further improvement on the program, eight kinds of specifications can store memories bring up can be used, the change in different specifications of the products at the same time without complex adjustment process!With full open box structure, the transmission structure at a glance, more convenient maintenance;Materials used in the enclosure, 12 mm thick steel plate to ensure the stability of the machine under the high speed.

Technical performance

1、

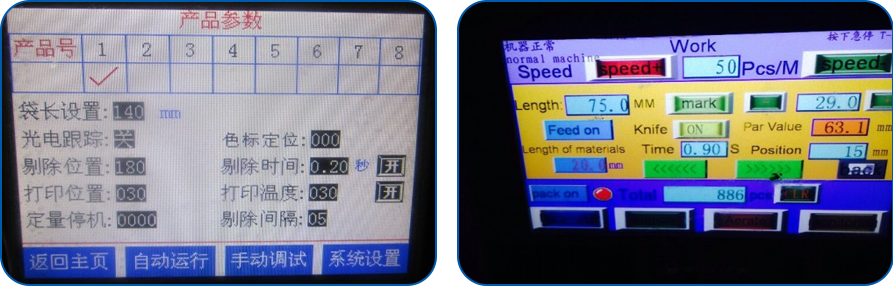

touch mode man-machine interface control, convenient and quick parameter setting, high speed and efficient.

2、

using photoelectric tracking technology, the digital input, sealing and cutting position accurately.

3、

fault diagnosis and alarm display on its own.

4、

constant temperature is adjustable, intelligent control, can adapt to all kinds of packaging materials.

5、

double frequency conversion control, bag length is set is cut, one pace reachs the designated position, the province province membrane.

6、

Automatic feed. Check material. Pick out waste function.

parameter
Max.film width

260mm

Max packaging capacity(according to its material to fix)

120 times/min

Suitable film thickness

0.04-0.09mm

Length of bags

50-330mm

Packaging with

25-110mm

Packaging hight

≤50mm

Total power

2.2Kw 220V

(L x W x H)Overall dimensions

3500 x880x1500mm
